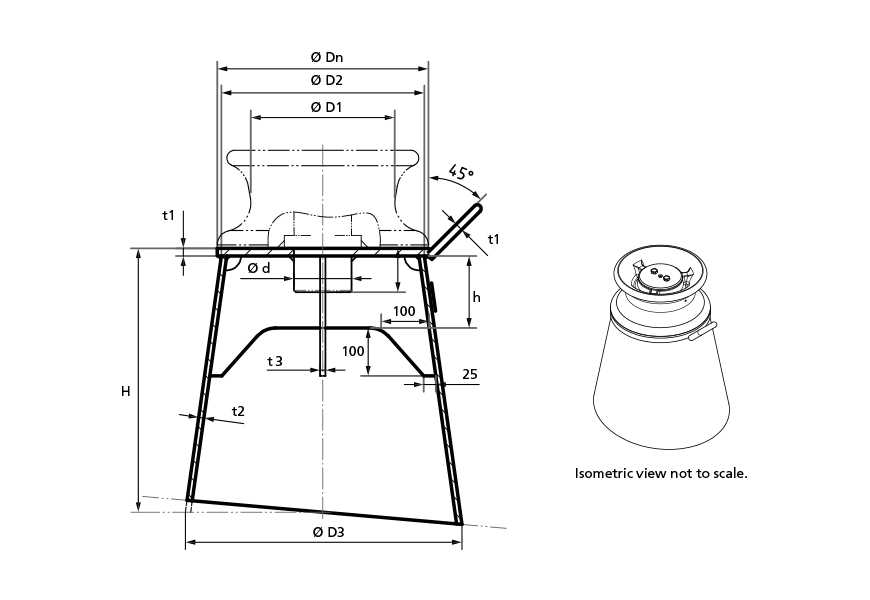

Diameter ØD3 is to be calculated depending on the height of the pedestal, H.
(D3 = D2 + 2 × (H – t1) × tan 10°)
The height H is to be determined for each vessel, but standard height is 500 mm,
1000 mm and 1500 mm.

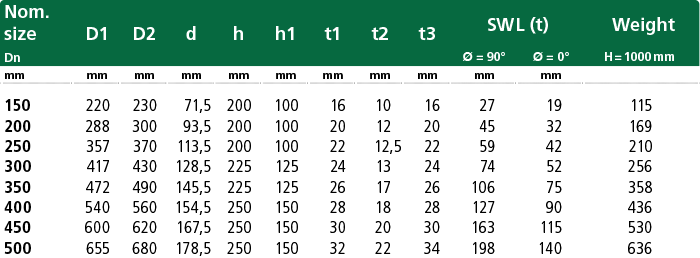

Note: The measurements in tables may vary between different models. Sotra Anchor & Chain AS can not be hold responsible for any deviate between tables and delivered equipment.
